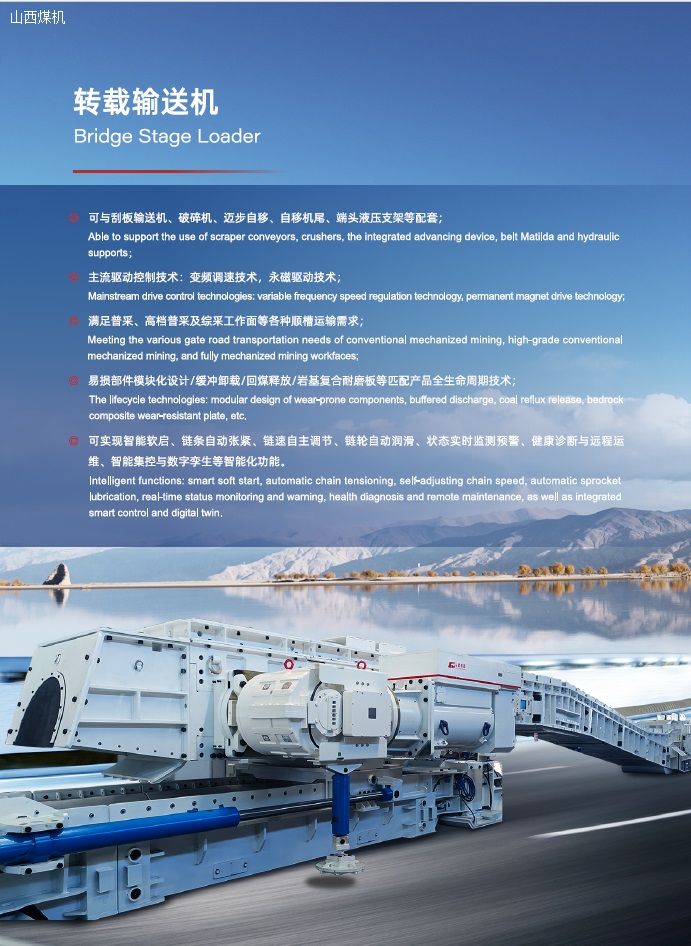

轉載輸送機
可與刮板輸送機、破碎機、邁步自移、自移機尾、端頭液壓支架等配套；
主流驅動控制技術：變頻調速技術，永磁驅動技術；
滿足普采、高檔普采及綜采工作面等各種順槽運輸需求；
易損部件模塊化設計/緩沖卸載/回煤釋放/巖基復合耐磨板等匹配產品全生命周期技術；
可實現智能軟啟、鏈條自動張緊、鏈速自主調節、鏈輪自動潤滑、狀態實時監測預警、健康診斷與遠程運維、智能集控與數字孿生等智能化功能。
Bridge Stage Loader
Able to support the use of scraper conveyors, crushers, the integrated advancing device, belt Matilda and hydraulic supports；
Mainstream drive control technologies: variable frequency speed regulation technology, permanent magnet drive technology;
Meeting the various gate road transportation needs of conventional mechanized mining, high-grade conventional mechanized mining, and fully mechanized mining workfaces;
The lifecycle technologies: modular design of wear-prone components, buffered discharge, coal reflux release, bedrock composite wear-resistant plate, etc.
Intelligent functions: smart soft start, automatic chain tensioning, self-adjusting chain speed, automatic sprocket lubrication, real-time status monitoring and warning, health diagnosis and remote maintenance, as well as integrated smart control and digital twin.
|
系列 Type |
槽內寬 Inner width of pan（mm） |
裝機功率Installed power（kW） |
輸送量Capacity (t/h) |
圓環鏈規格Size of round link chain（mm） |
刮板鏈型式 Chain configuration |
|
830 |
780 |
200 |
1300 |
Φ30×108 |
中雙鏈 Twin inboard |
|
250 |
1400 |
||||
|
315 |
1500 |
||||
|
800 |
800 |
250 |
1800 |
Φ34×126 |
|
|
315 |
1800 |
||||
|
400 |
2000 |
||||
|
525 |
2000 |
Φ38×137 |
|||
|
900 |
900 |
315 |
2000 |
Φ34×126 |
|
|
400 |
2000 |
||||
|
525 |
2200 |
Φ38×137 |
|||
|
1000 |
1000 |
375 |
2200 |
Φ34×126 |
|
|
400 |
2200 |
||||
|
525 |
2400 |
Φ38×137 |
|||
|
700 |
3200 |
Φ42×146 |
|||
|
1200 |
1200 |
315 |
3000 |
Φ34×126 |
|
|
375 |
3000 |
||||
|
400 |
3200 |
Φ38×137 |
|||
|
525 |
3500 |
||||
|
700 |
3500 |
Φ42×146 |
|||
|
1350 |
1350 |
525 |
4000 |
Φ42×146 |
|
|
700 |
4500 |
||||
|
1000 |
4500 |
||||
|
1400 |
4500 |
||||
|
1550 |
1550 |
525 |
4500 |
||
|
1600 |
1600 |
1000 |
5000 |
Φ48×152 |
